AC3D10060A
Specifications: The AC3D10060A is a 600V, 10A SiC Schottky diode in TO-220-2. Key specs: V_F=1.5V, P_TOT=136.5W, Q_C=24nC. A reliable and efficient 10A diode for 600V systems.
Application Scenarios: A staple for 10A PFC and output rectification in industrial and telecom PSUs. Also used in appliance motor drives and battery chargers.
AC4D10120A
Specifications: The AC4D10120A is a 10A, 1200V SiC Schottky diode in TO-220-2. Specs: V_F=1.5V, P_TOT=166.5W, Q_C=52nC. A compact workhorse for 10A, 1200V applications.
Application Scenarios: Widely used in compact 1-2kW solar inverters, EV charging wall boxes, and industrial PSUs. A popular choice for upgrading efficiency in standard form factors.
AC4D10120H

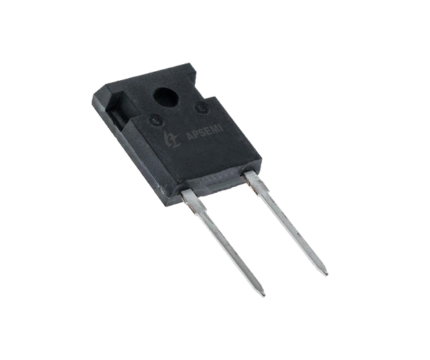

Specifications: The AC4D10120H is a 1200V, 10A SiC Schottky diode in TO-247-2. Key specs: V_F=1.5V, P_TOT=153W, Q_C=52nC. It offers a balance of voltage, current, and package for 10A designs.
Application Scenarios: Versatile for various 10A applications. Used in EV onboard chargers, telecom power systems, and industrial control power supplies. A high-performance upgrade path.
